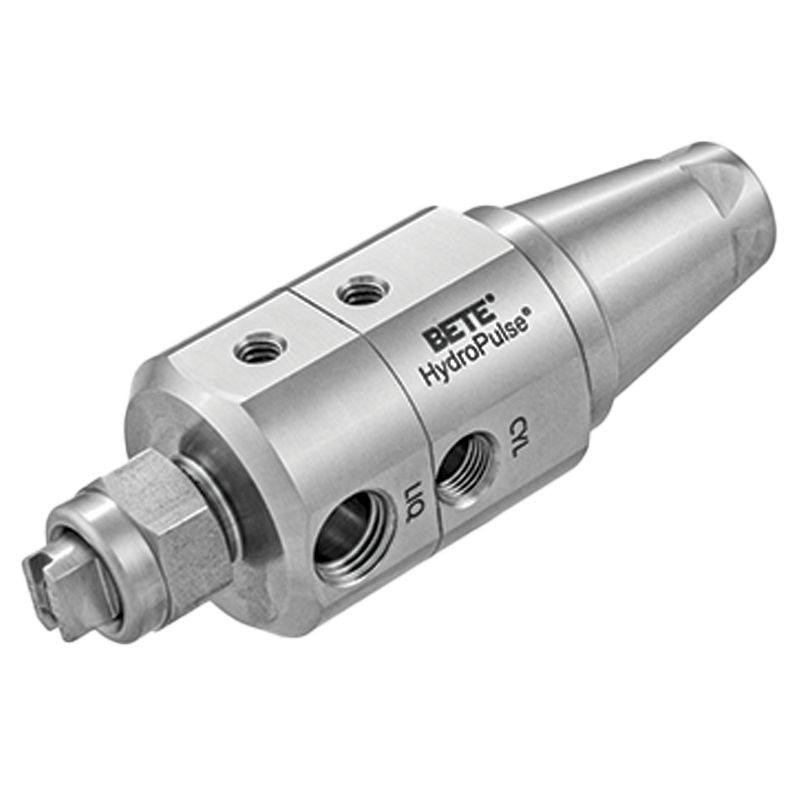

DESIGN FEATURES
The precise intermittent spray uses liquid pressure as the force for atomization
Improves product quality with uniform, repeatable coverage and drip-free performance
Interchangeable flat fan, full cone, or hollow cone nozzle tips provide a wide range of spray patterns and volumes to match requirements
Pneumatically actuated for precise on/off spray directly on the target
Minimal overspray reduces waste and maintains a clean, safe environment
Straight through porting for fluid recirculation
Hygienic connections and mounting brackets are available options
Product Specifications

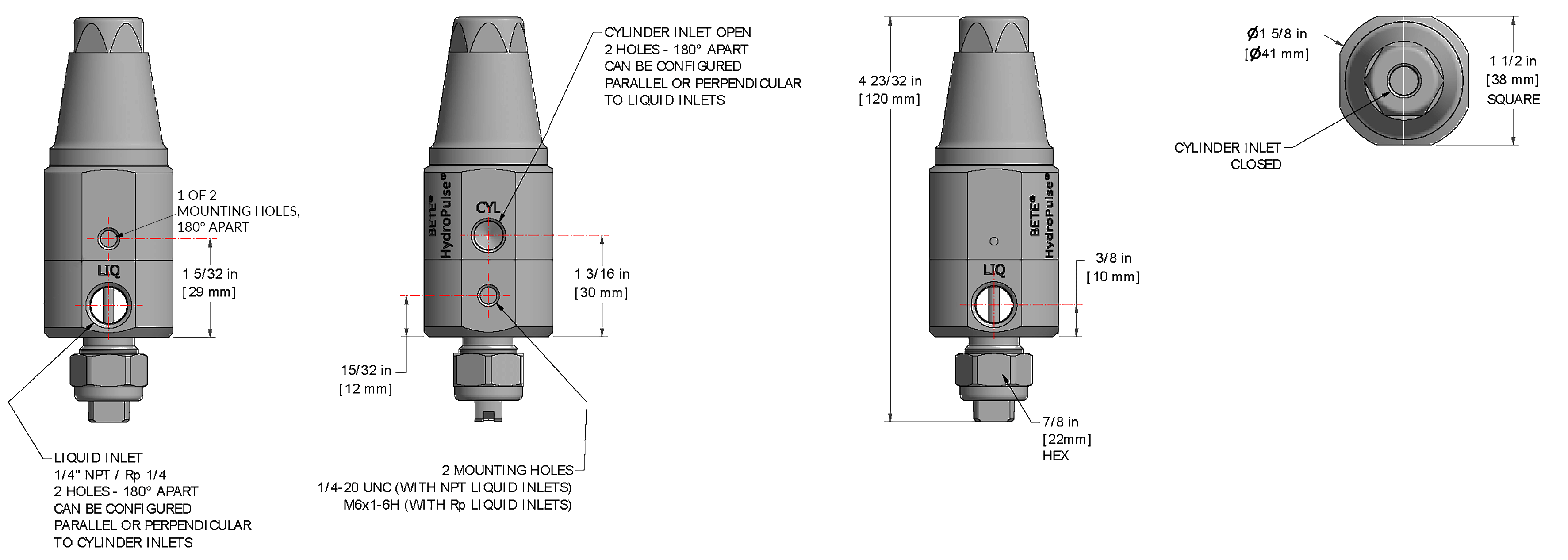

Liquid inlet connection
¼” NPT or BSPP, liquid; ⅛” NPT or BSPP, cylinder air; or DN10 tri-clamp
Maximum liquid flow rate
12.6 GPM / 57.7 LPM
最大额定压力
600 PSI / 42 bar
Thermal insulation class
-15° F to 400° F / -26° C to 204° C
Air cylinder pressure
30 PSI to 250 PSI / 2 bar to 17 bar
Air cylinder operation
Single acting (spring return) or double acting
Maximum cycle frequency
3 cycles / sec
Nozzle construction
Stainless steel wetted components, Viton®(FKM) seals
Interchangeable Nozzle Tip Options
