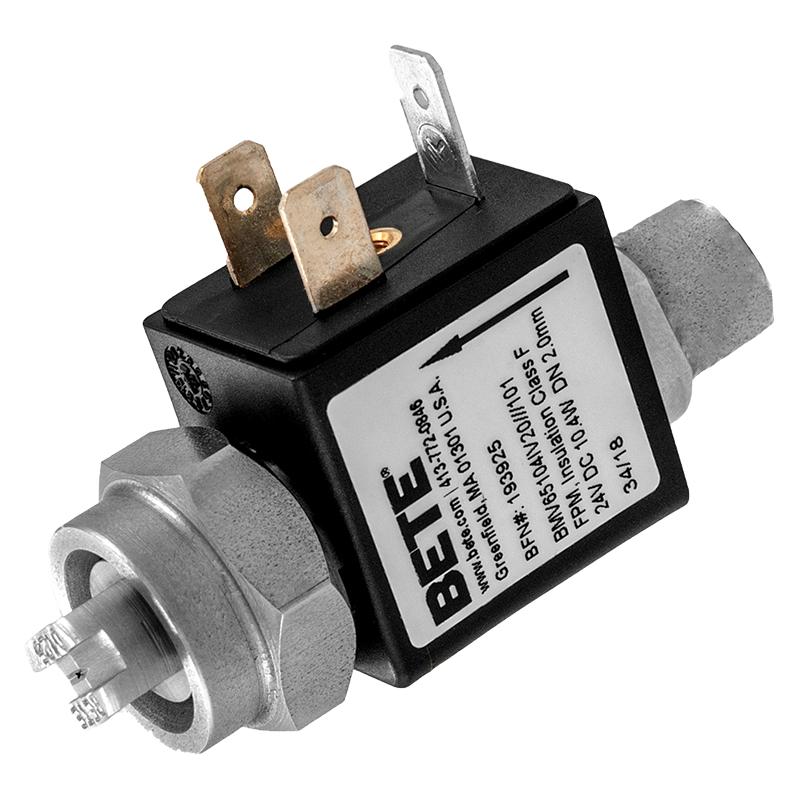

DESIGN FEATURES
Interchangeable spray tips
Capable of cycling on/off up to 50 cycles per second
Does not require a compressed air source
Precision volume sprays directly on the target
Reduced waste and minimal overspray maintain a clean, safe environment
Uniform and repeatable coverage improves product consistency

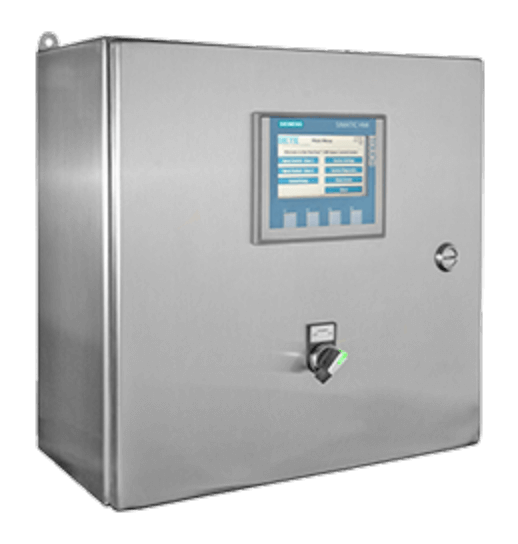

Paired with the FlexFlow spray controller, high-frequency cycling known as Pulse Width Modulation (PWM) can vary the liquid spray flow rate at constant supply pressure with little change in spray performance by adjusting the duty cycle
Product Specifications

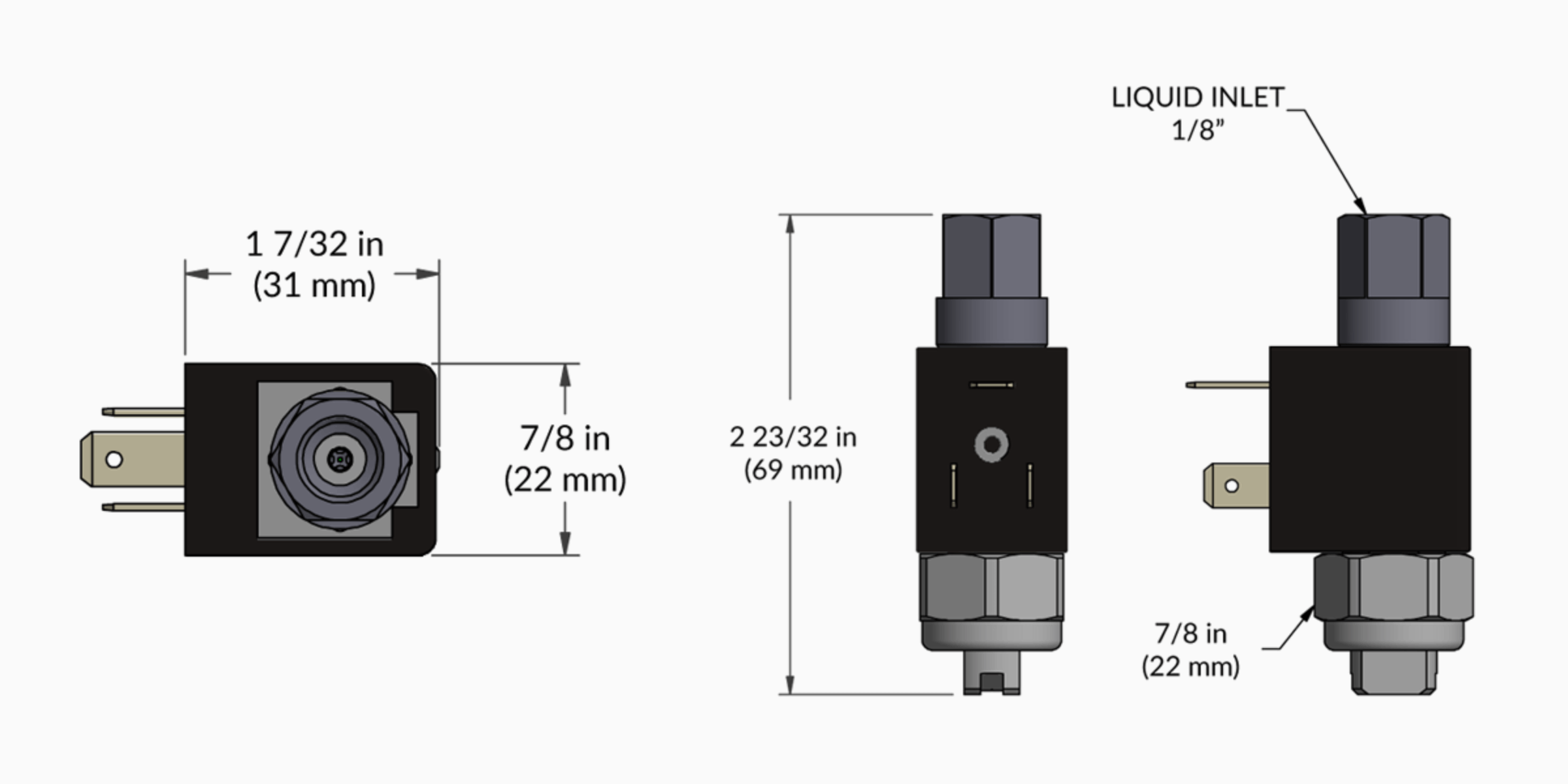

Liquid inlet connection
⅛", NPT or BSPP
Maximum liquid flow rate
1.0 GPM / 3.8 LPM
最大额定压力
300 PSI / 20 bar
Thermal insulation class
F (311° F / 155° C)
Power
10.4 W @ 24 VDC
Electrical connector
DIN 11 mm
Maximum cycle frequency
50 cycles / sec
Nozzle construction
Stainless steel wetted components, Viton®(FKM) seals

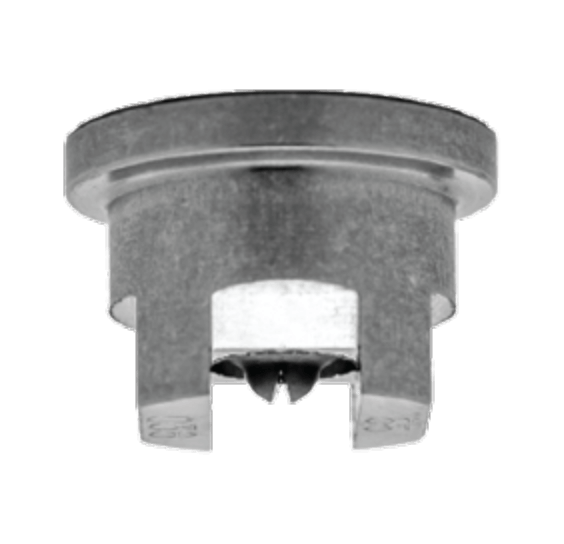

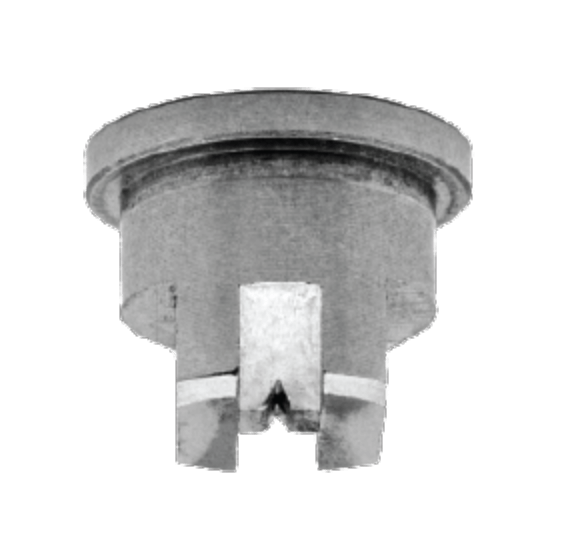

Interchangeable Nozzle Tip Options
For More Information Download Data Sheets
HydroPulse Electric Catalog Datasheet
HydroPulse Electric - Metric Catalog Datasheet
Notes: Due to pressure loss through the Electric HydroPulse body, the nozzle tip flow rate differs from the standard for each tip.

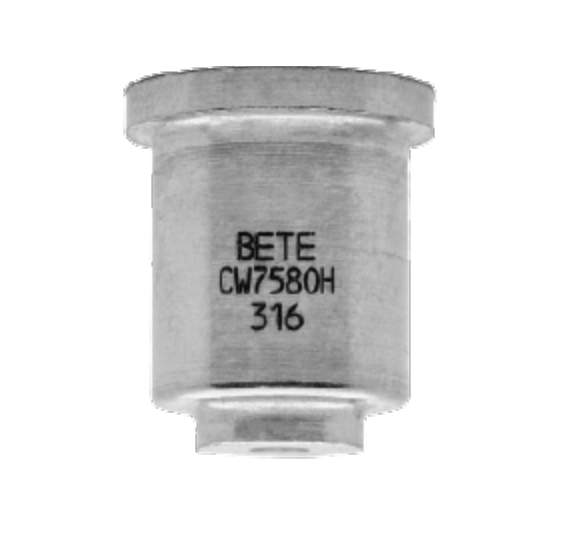

For the CW tips, full cone/hollow cone patterns are suitable for continuous operation only (not recommended for use with PWM control). Please reference the HydroPulse Electric Datasheet for a resolved flow rate range.
