The original BETE spiral nozzle design is also called a pigtail, corkscrew, or helix nozzle. The spiral produces relatively coarse droplets surrounded by wider bands of relatively fine droplets. Ideal for quenching, scrubbing, and evaporative cooling.
Configure Your Exact Spiral Spray Nozzles
![Image](http://www.drivenofky.com/wp-content/uploads/2022/02/Spiral-01.png)

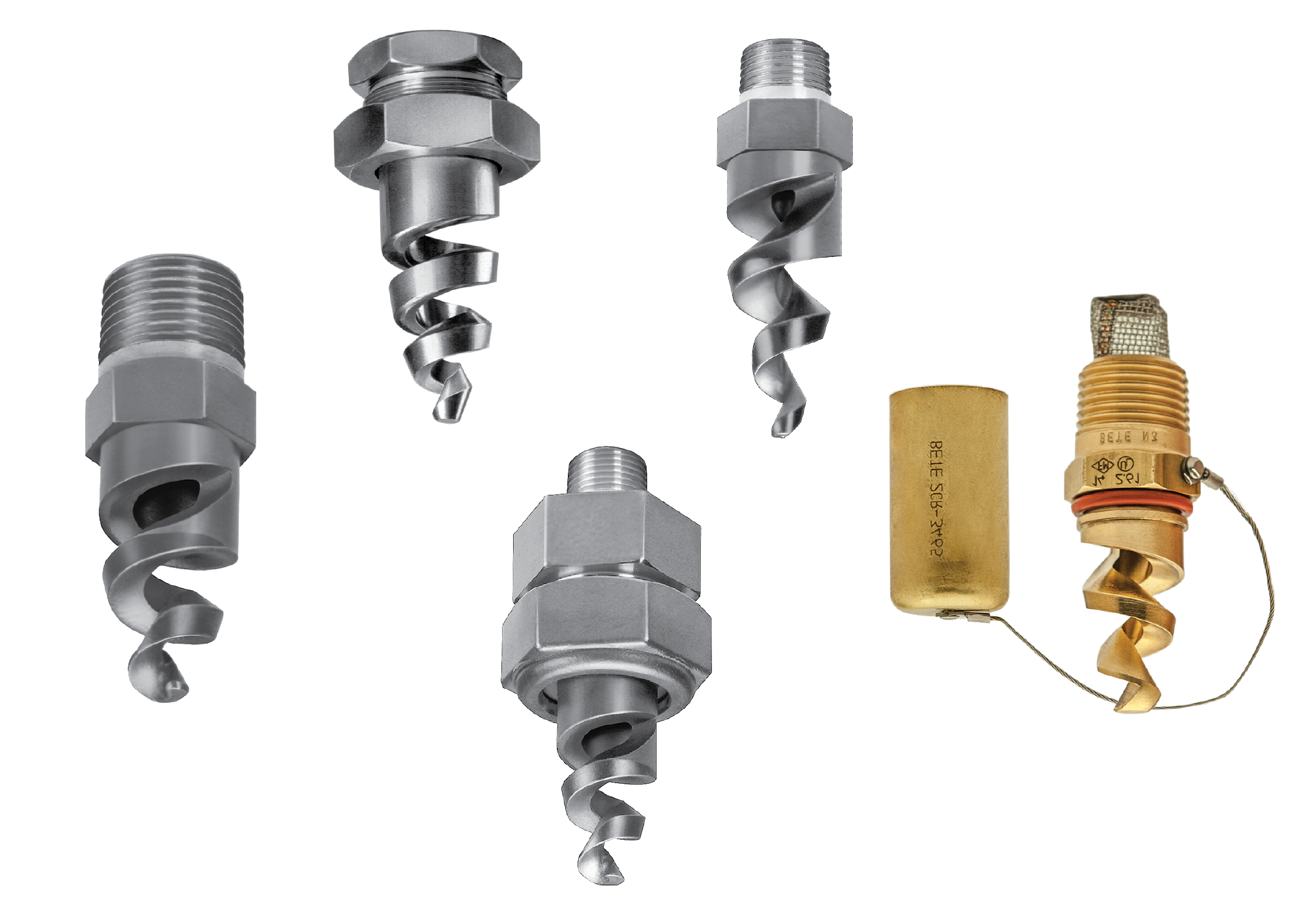

The Original BETE TF Spiral Nozzle Design
Discover theTF spiralnozzle invented by BETE. The durable one-piece design of the TF is resistant to clogging and has a high discharge velocity. Spiral nozzles produce the finest drop size of and direct-pressure nozzle for very fine atomization. The TF offers a wide range of flow rates and spray angles.
Customers trust the high performance of BETE’s TF spiral nozzles for quenching, scrubbing, and evaporative cooling applications.
![Image](http://www.drivenofky.com/wp-content/uploads/2023/01/TF-1.png)
以改善你的过程和喷雾技术tions

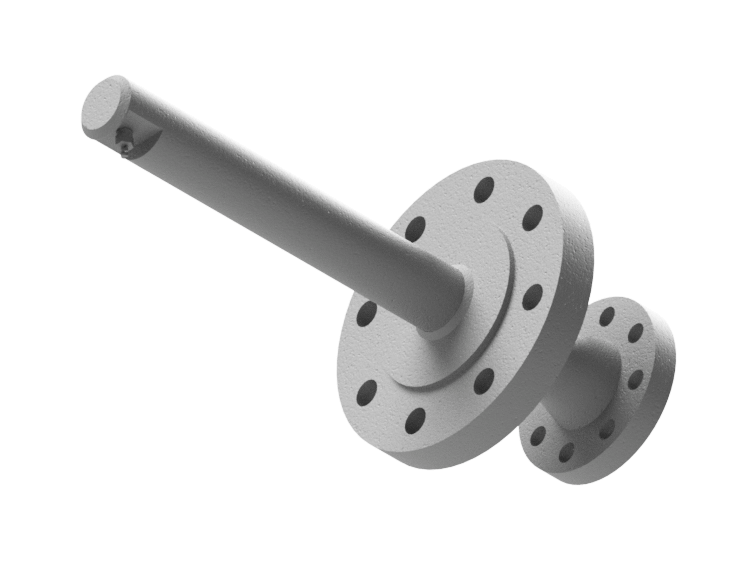

Choose your spiral nozzle, and BETE can custom design and fabricate spray headers, spray lances, and injectors for precise placement to optimize your spray process.
Fabrication is BETE’s specialty, from complex ASME Code compliance to simple flush pipe assemblies.
![Image](http://www.drivenofky.com/wp-content/uploads/2022/08/Right-Angle-Lance.png)
Spiral Nozzles
![Detail of the BETE TF](http://www.drivenofky.com/wp-content/uploads/2022/02/TF-1.png)
TF FULL CONE & HOLLOW CONE SPIRAL NOZZLES
![Image](http://www.drivenofky.com/wp-content/uploads/2022/02/ST-1.png)
ST ABRASION RESISTANT SPIRAL NOZZLES
![Detail of the BETE STXP](http://www.drivenofky.com/wp-content/uploads/2022/02/STXP-1.png)
STXP LARGEST FREE PASSAGE FULL CONE SPIRAL NOZZLES
![详细的蠢人EZTF。](http://www.drivenofky.com/wp-content/uploads/2022/02/EZTF-1.png)
EZTF QUICK CONNECT FULL CONE OR HOLLOW CONE SPIRAL NOZZLES
![Spiral spray nozzle spray pattern.](http://www.drivenofky.com/wp-content/uploads/2022/02/Full-Auto-Educator.png)
Spiral Spray Nozzles
The spray pattern of the spiral nozzle is formed by the fluid shearing along with the turns of the spiral, which produce multiple concentric cones. These cones form 2 to 3 bands of relatively coarse droplets, surrounded by wider bands of relatively fine droplets.

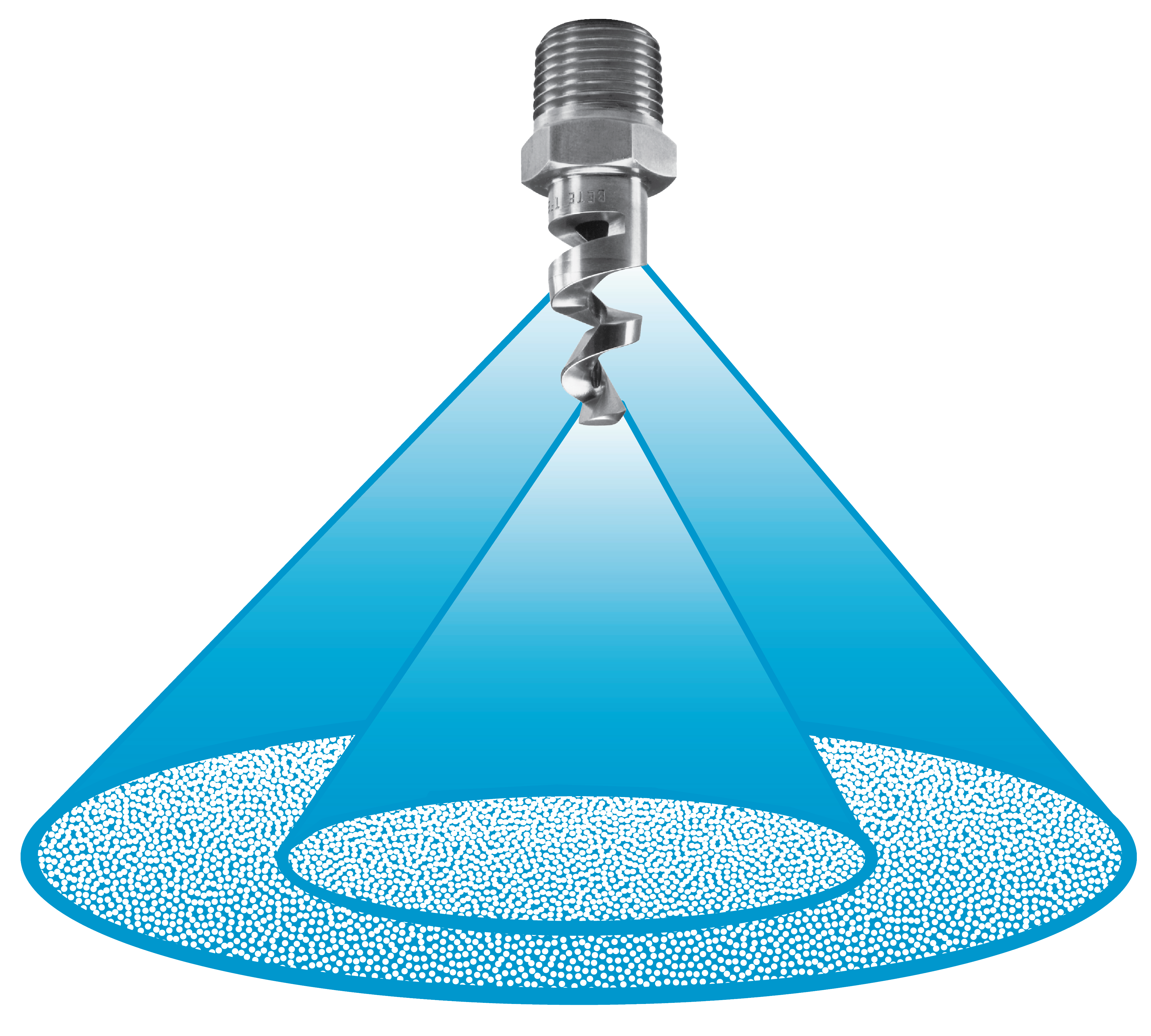

![Illustration of a spiral cone spray pattern.](http://www.drivenofky.com/wp-content/uploads/2022/02/Spiral-Full-Cone-and-Spiral-Hollow-Cone-01-1.png)
Spiral Full Cone
-
Larger coarse droplets are formed on the outer perimeter
-
Smaller droplets formed inside the cone
![Detail of a Hollow Full Cone.](http://www.drivenofky.com/wp-content/uploads/2022/02/Spiral-Full-Cone-and-Spiral-Hollow-Cone-02.png)
Spiral Hollow Cone
-
Larger coarse droplets are formed on the outer perimeter.
Examples of Why You Would Choose This Spray Pattern Over Others
-
If you are looking for gas cooling or want the liquid to react with a process for smaller droplet size, the spiral full cone nozzle gives you outstanding results.
-
If wind resistance and heat removal are a concern, the larger droplets produced by the spiral will give you outstanding results.
